Magic Sheet Channel Offset Tool

A command-line tool to offset channel numbers in Eos Magic Sheet XML files. Useful for merging shows or remapping channel ranges.

I recently needed to offset all channel numbers in a Magic Sheet by 4000 for a show merge. Doing this manually would be tedious and error-prone, so I wrote a Python script to automate it.

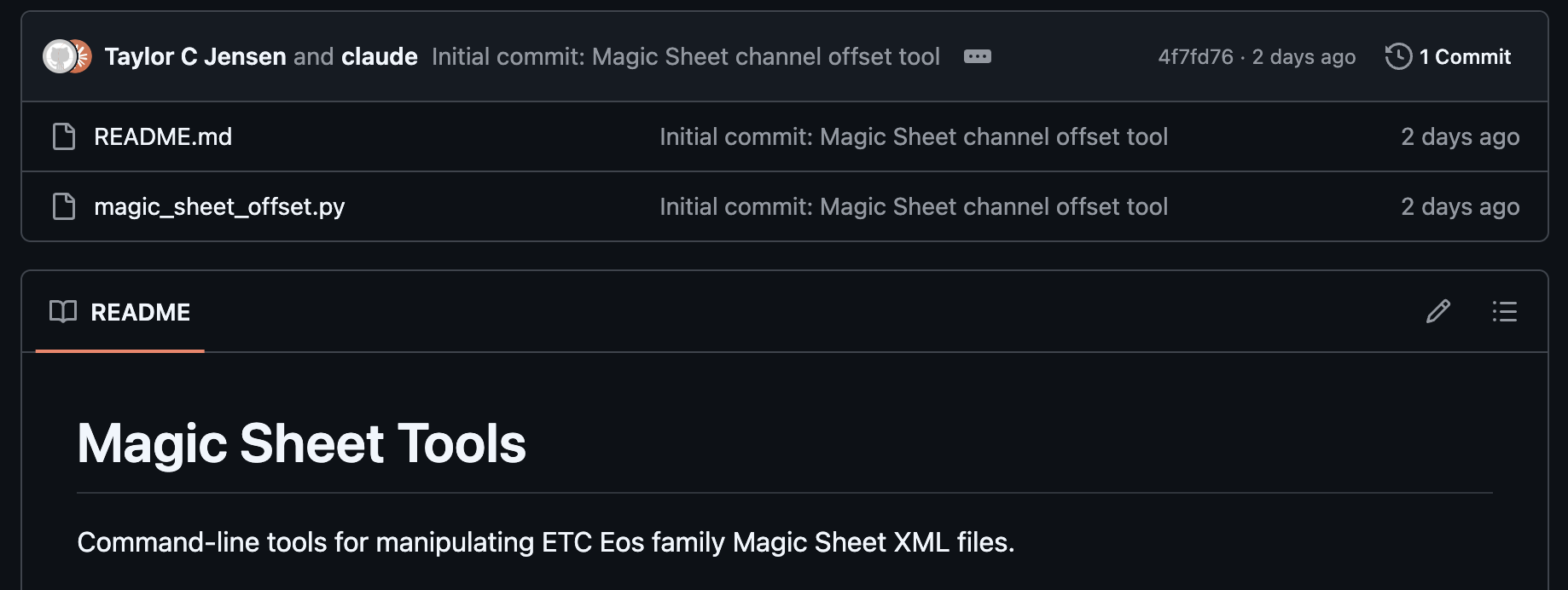

Magic Sheet Tools GitHub repo

Download

The tool is available on GitHub: magic-sheet-tools

You’ll need Python 3.9 or later installed on your computer. No other dependencies are required.

Usage

The basic command adds 4000 to every channel number:

python3 magic_sheet_offset.py "My Magic Sheet.xml"

This creates a new file called My Magic Sheet_modified.xml in the same folder.

Options

You can customize the offset amount:

python3 magic_sheet_offset.py "My Magic Sheet.xml" --offset 5000

Or specify a different output directory:

python3 magic_sheet_offset.py "My Magic Sheet.xml" --output-dir ~/Desktop

Exporting a Magic Sheet from Eos

  1. Open the Magic Sheet tab
  2. Click the chevron/arrow button labeled {Editor} on the right side
  3. In the Magic Sheet Object Library panel, click the 4th tab (Settings/gear icon)
  4. Scroll to the Import/Export section at the bottom
  5. Click {Save As Text File}
  6. Save the XML file to your desired location

Importing Back to Eos

  1. Open the Magic Sheet tab
  2. Click the chevron/arrow button labeled {Editor} on the right side
  3. In the Magic Sheet Object Library panel, click the 4th tab (Settings/gear icon)
  4. Scroll to the Import/Export section at the bottom
  5. Click {Import Text File}
  6. Navigate to and select your modified XML file

Notes

  • Only channel references are modified. Groups, subs, macros, and other target types stay unchanged.
  • The original file is preserved. A new _modified file is created.
  • The tool handles both UTF-16 and UTF-8 encoded files automatically.

XML export preserves structure and channel numbers but loses embedded images and backgrounds. For complete Magic Sheet transfer with graphics intact, use show file merge instead.
